Precision Industrial Coating Technology
Technology Introduction
Precision industrial coating is a new-generation high-precision spraying technology independently developed by Rocktin, enabling large-area, high-speed and high-precision application. Supported by AI image recognition, it can automatically define and accurately identify non-spraying areas such as electrodes, greatly improving process flexibility. The spraying process is splash-free and eco-friendly. Supporting multi-sided simultaneous spraying and compatible with high-viscosity materials, it offers significant advantages over traditional PET insulation film wrapping.
Core Advantages
Ultra-high precision coating, excellent corner coverage, high productivity, pollution-free
Innovative Side-spray Technology
Supports horizontal and vertical spraying, capable of spraying up to three sides simultaneously
Single coating thickness 50 μm, spraying distance over 5 mm
Only 2-3 passes required to reach target thickness
No Splashing or Residue Throughout the Process
No post-cleaning needed for battery electrodes after spraying
High Spraying & Curing Efficiency
Complete 6-sided spraying and curing of workpieces within seconds
Highly Compatible Nozzles & Special High-viscosity Materials
High-adhesion materials solve traditional PET insulation film peeling and aging issues, greatly extending protective coating life
Excellent Material Properties
Outstanding insulation and adhesion, resistant to electrolyte and chemical solvent corrosion
Customized Services
Rocktin provides tailored equipment and adhesive solutions for each customer
Professional Technical Support
Long-term one-on-one professional support with fast response to ensure stable production line operation
Application Scenarios
Battery Can PET Insulation Film Coating
Circuit Board Conformal Coating
Other Precision Parts Requiring Precision Coating

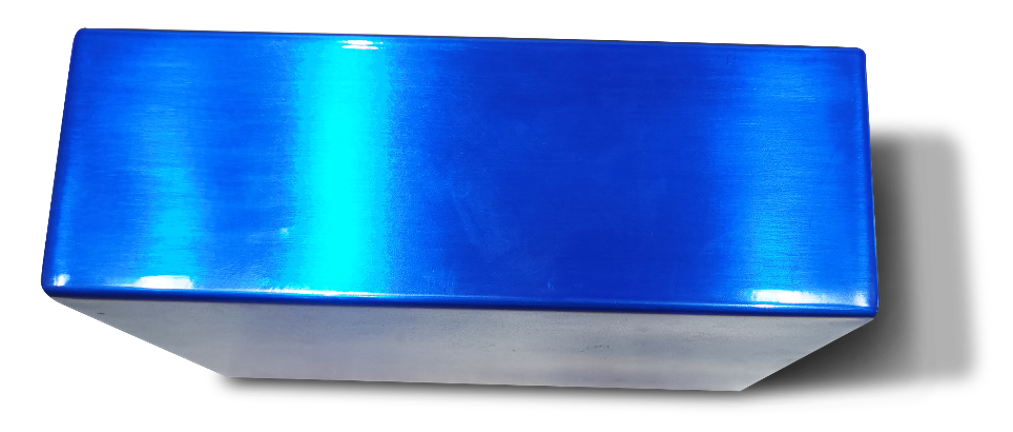

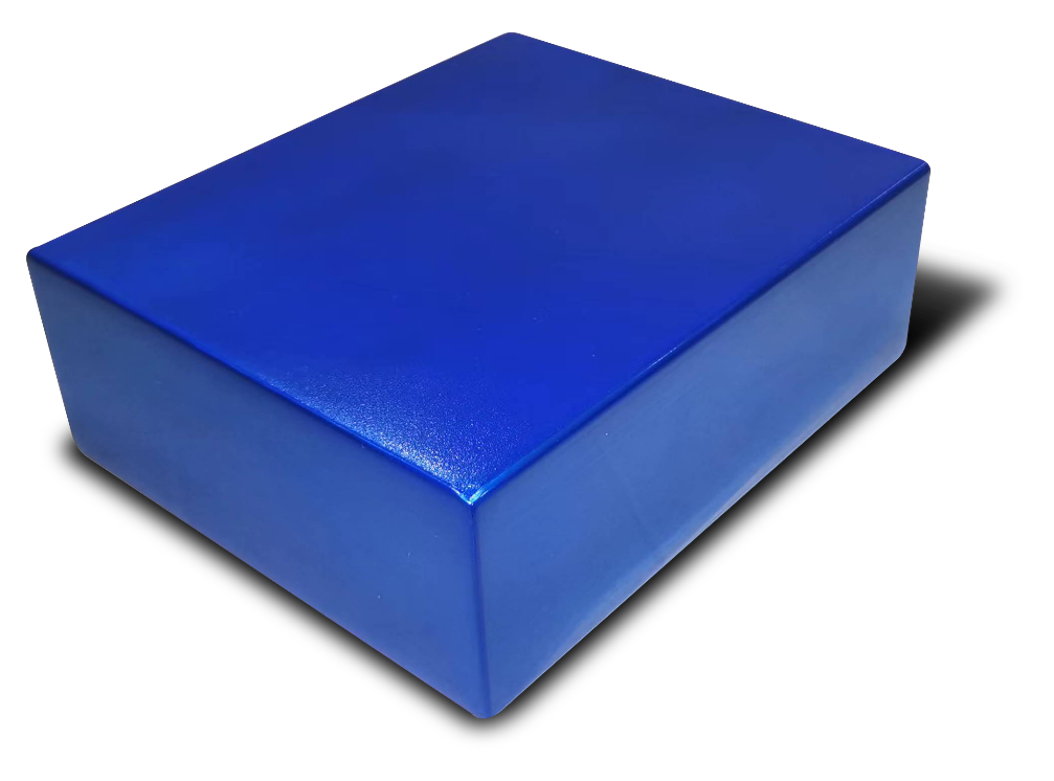

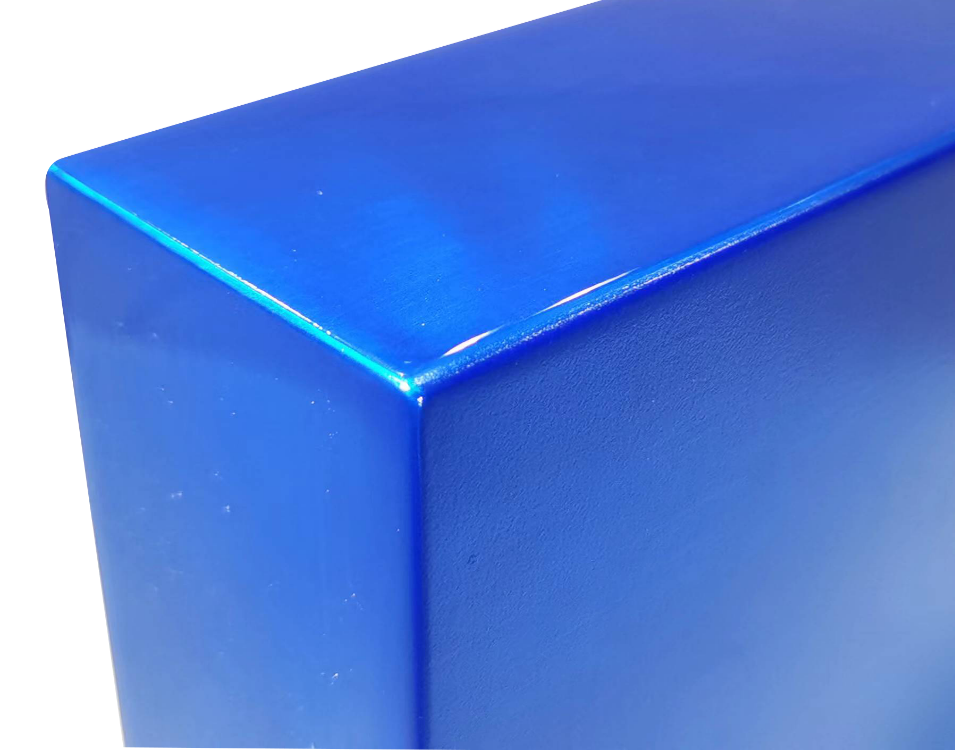

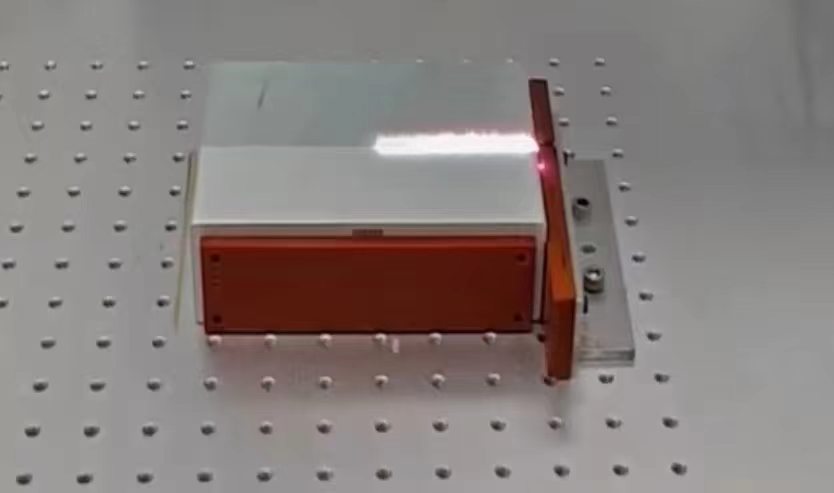

Spraying Effect Display
Process Flow
Rocktin provides full-process service and customized design according to customer requirements. On-site visits and sample trials are available
Step 1: Visual Inspection
Check for defects such as damage, deformation or poor welding

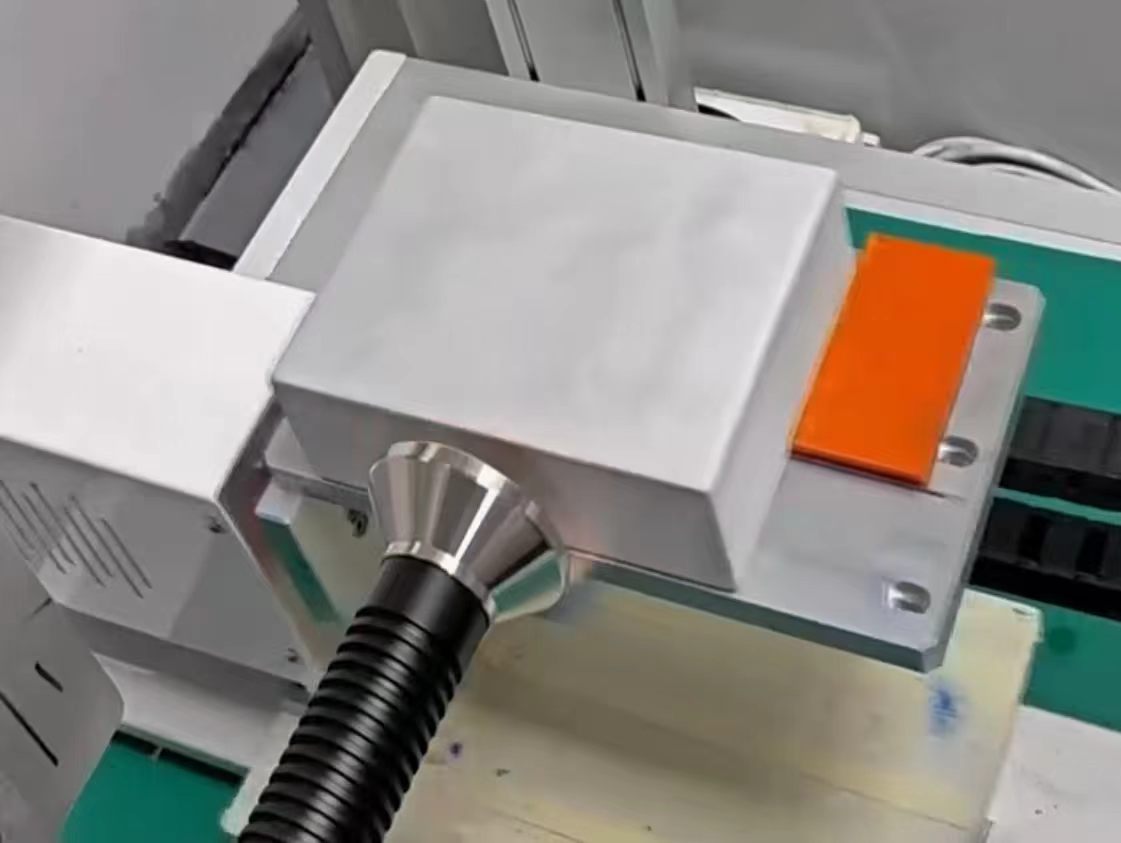

Step 2: Laser Surface Cleaning
Clean product surface with laser cleaning machine
Step 3: Plasma Treatment
Surface activation and planarization using plasma equipment

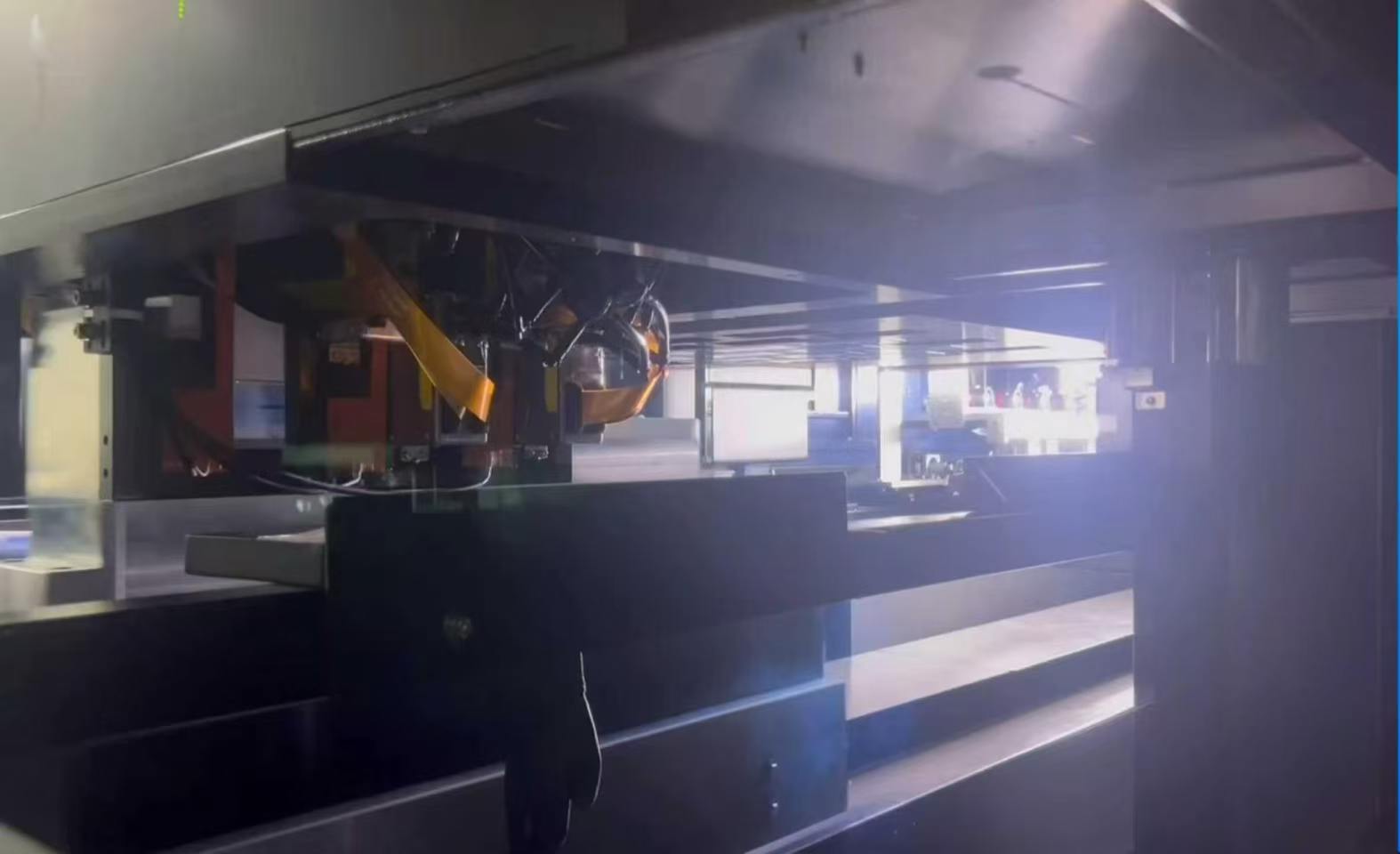

Step 4: Component Coating
Identify the workpiece, generate corresponding coating path, send to coating equipment and complete the process

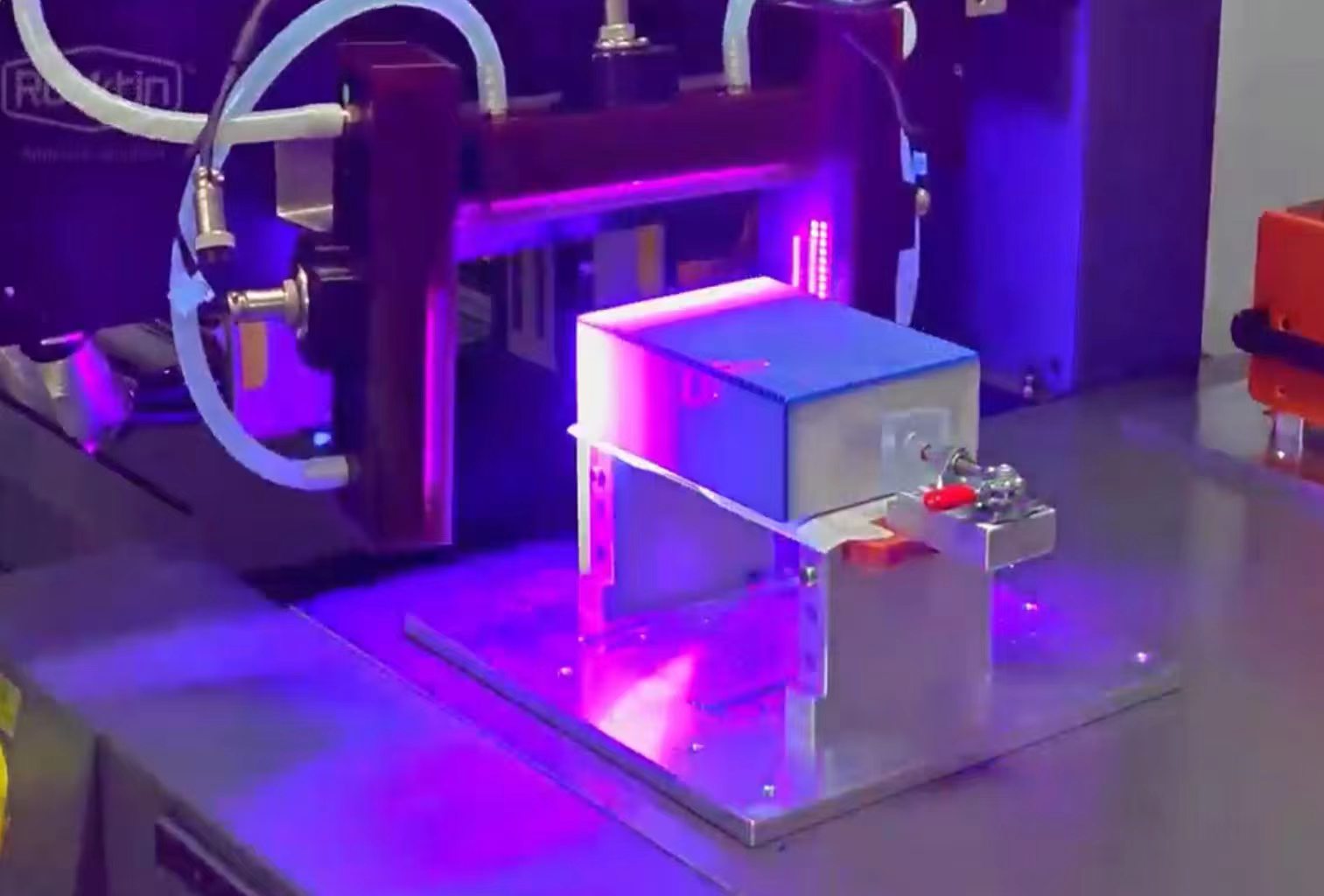

Step 5: Inductive UV Curing
Accelerated curing via inductive light irradiation
Step 6: Final Visual Inspection
Check for particles, white spots, edge missing coating and splashes on non-coated areas such as tabs

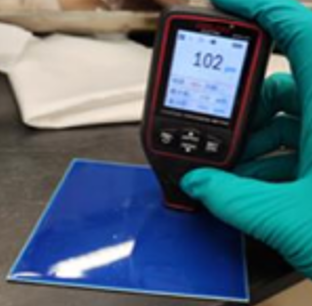

Step 7: Coating Thickness Measurement
Measure coating thickness on each side at designated points using contact thickness gauge

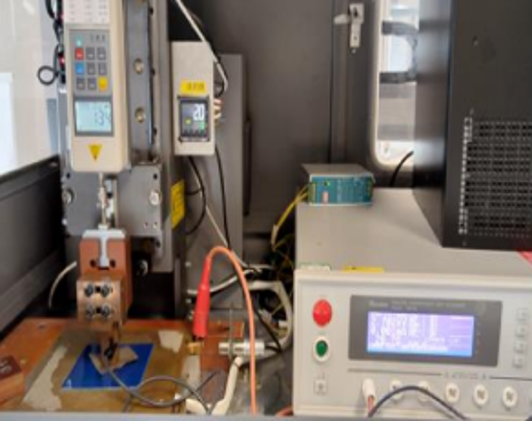

Step 8: Insulation & Withstand Voltage Test
Test finished products with insulation/withstand voltage tester
Learn More & Contact Us
You may submit your requirements or schedule a technical consultation via our contact page. From single-machine selection to full-line automation upgrading, our professional team is ready to provide you with customized solutions and technical support.
